| Offer comm protocol for your server software integration Built-in deep smart-learning face algorithm, automatically extract face features and self-learn Face capture mode to display face name in OSD Support many catpure mode: quick,interval,leave and capture times can be set； Support vertical and horizontal capture angle can be set |
| Support detect Max 32 faces per frame； Support 30*30-700*700 pixel face can be detected； Support upload face photo, human body photo, fullscreen shot, and image quality can be set； Support Digital WDR for HD face exposure； Support 2 Capture mode: backlight mode and normal mode； |
|
n Technical Specs |
|
|
|
|
|

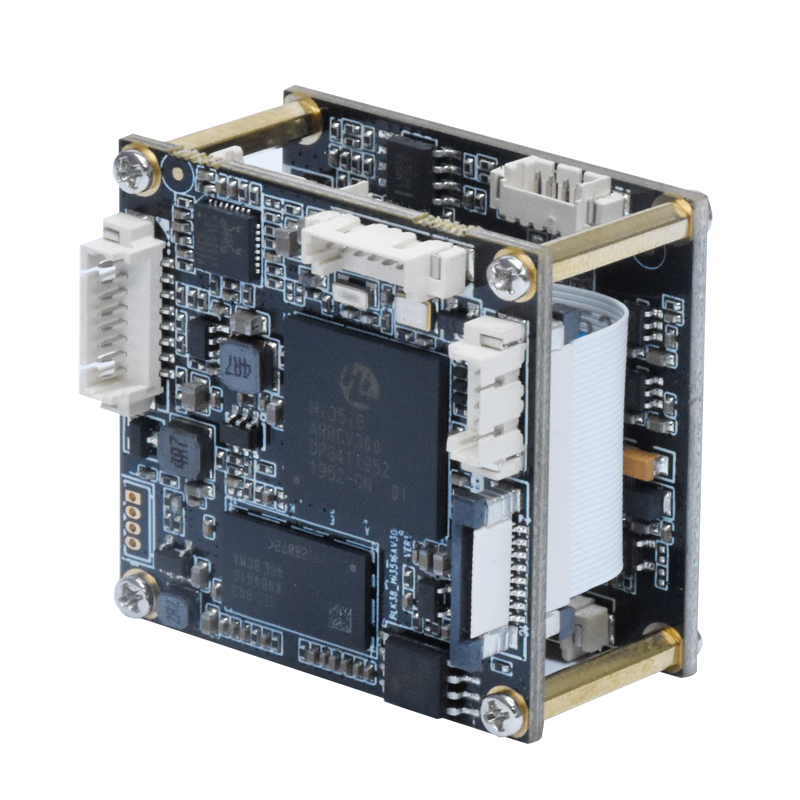

MainChip |
Hi3516DV500，Cortex A7@900MHz 1GB eMMC |
|
Sensor |
1/1.8" Progressive Scan CMOS IMX385 |
|
Min illumination |
color：0.01Lux@F1.2(AGC ON)，Black&white：0Lux(IR ON) |
|
WDR |
Digital WDR |
|
Lens |
3.6-11mm motorized lens(default), 6mm/8mm/manual 2.8-12mm(optional) |
|
Main stream resolution |
120 fps@（1920×1080，1280 × 720） |
|
Sub stream resolution |
120 fps@（704×576，640×480） |
|
Encode format |
H.265+/H.265/H.264 |
|
Encode bit |
32 Kbps~16 Mbps |
|
H.264 profile |
BaseLine Profile/Main Profile/High Profile |
|
H.265 profile |
Main Profile |
|
Bit Rate control |
· Fixed rate, variable rate ·
|
|
Internal mic |
optional |
|
Enhanced Image |
· Backlight compensation, strong light suppression, 3D digital noise reduction, fog penetration ·
|
|
Internal speaker |
optional |
|
Image setting |
Rotation, saturation, brightness, contrast, sharpness, AGC, and white balance support for day/night conversion |
|
Network protocol |
HTTP、HTTPS、TCP/IP、UDP、RTP、FTP、RTCP、RTSP、NTP、DHCP、DNS、DDNS、SNMP、SSL/TLS、WebSocket、UPNP、PPPOE,ONVIF |
|
Browser |
Plugin for IE：IE10，IE11 Local preview：Edge，Chrome，Firefox |
|
Waterproof |
IP66 |
|
Power input |
DC12V / POE(optional) |
