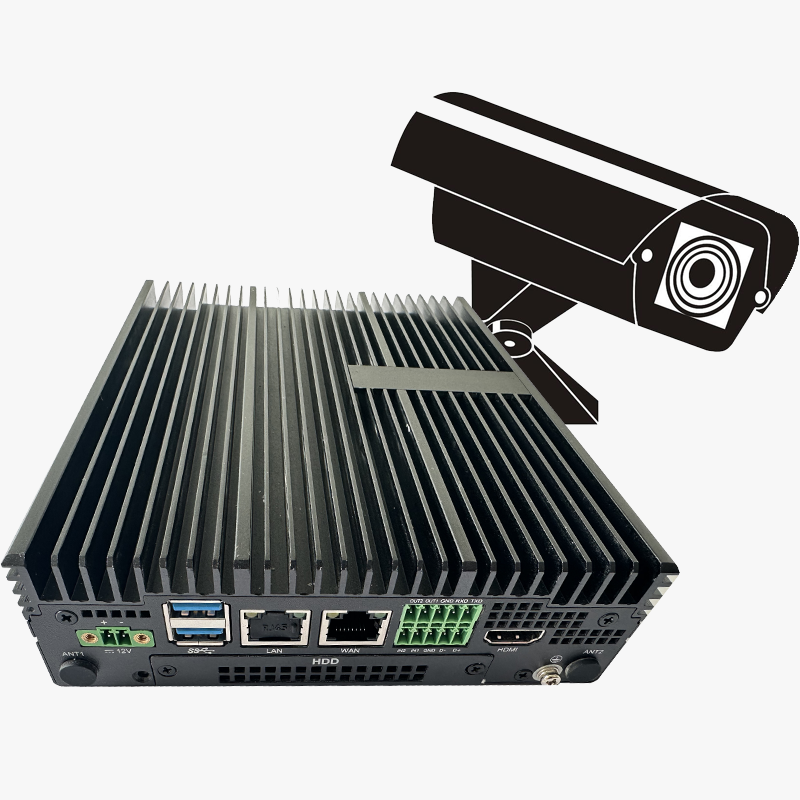

AI edge computing box terminal is used for the park, community, campus scene image intelligent analysis tools, can connect with the ordinary camera, NVR, third party rtsp video stream camera equipment such as video data intelligent analysis, combined with AI algorithm, can be personalized behavior warning, such as blacklist warning, smoking warning, not wearing a helmet warning, human body area invasion warning, vehicle violations stop early warning, electric car early warning, etc.
Smart Community, smart park, smart campus, etc

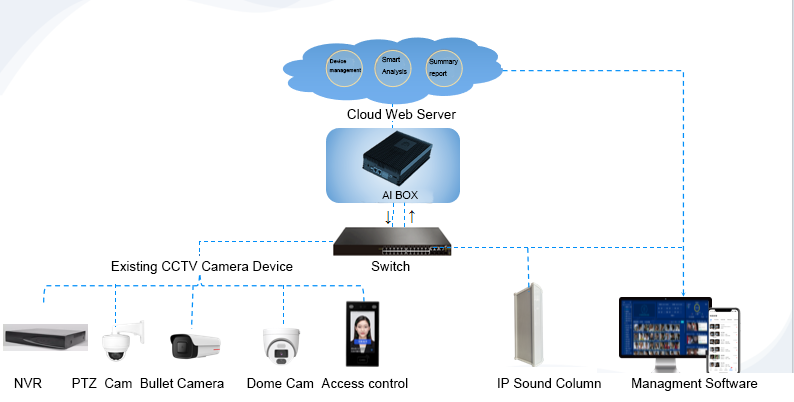

Cloud networking
|
product model |
LKG-EC4-8L |
LKG-EC4-16L |
|
performance index |
||
|
Number of Camera channels |
It supports 8 cameras for fully structured analysis, and each surveillance video supports more than 5 algorithms for parallel analysis and processing |
It supports 16 video cameras for fully structured analysis, and each surveillance video supports more than 5 algorithms for parallel analysis and processing |
|
Hardware specifications |
||
|
C PU |
8core A53@2.3GHz |
8core A53@2.3GHz |
|
Memory and storage |
Memory: 6GB, eMMC: 32GB |
Memory: 12GB, eMMC: 32GB |
|
Computing power |
INT8:10.6TOPS FP32:1.3TFLOPS |
INT8:17.6TOPS FP32:2.2TFLOPS |
|
Video / picture encoding and decoding |
Video decoding capability: H.264:1080 P @ 480 FPSH. 265:1080 P @ 480 FPS Video encoding capability: H.264:1080 P @ 25 FPSH. 265:1080 P @ 25 FPS Image decoding ability: 240s / s @1080P |
Video decoding capability: H.264:1080 P @ 960 FPSH. 265:1080 P @ 960 FPS Video encoding capability: H.264:1080 P @ 50 FPSH. 265:1080 P @ 50 FPS Picture codec ability: 480s / s @ 1080P |
|
size |
Length * width * height: 185 * 170 * 43.6 (mm) |
Length * width * height: 188 * 148 * 44.5 (mm) |
|

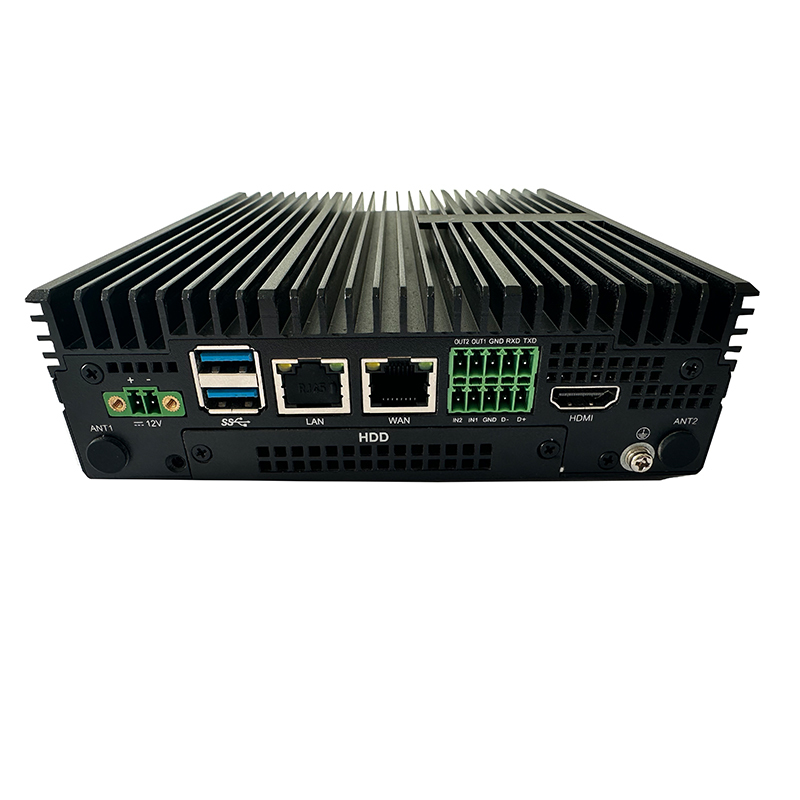

peripheral interface |
Network port: 10 / 100 / 1000Mbps adaptive * 2 USB：USB3.1 *2 Storage: MicroSD * 1 Display: HDMI * 1 Phoenix terminal: RS-485 * 2 / custom I / O |
Network port: 10 / 100 / 1000Mbps adaptive * 2 USB：USB3.1 *2 Storage: MicroSD * 1 Display: HDMI * 1 Phoenix terminal: RS-232 * 1 / RS-485 * 1 / custom I / O |
|
Power and consumption |
Power supply: DC: 12V Typical power consumption: 18W |
Power supply: DC: 12V Typical power consumption: 20W |
|
Temperature and humidity |
Operating temperature: -20℃ ~ + 70℃ (depending on the configuration) Humidity: 10%~90%, no condensation |
Operating temperature: -20℃ ~ + 60℃ (depending on the configuration) Humidity: 10%~90%, no condensation |
|
Other functions |
LTE Wireless pass-back |
Optional: SATA hard drive LTE Wireless pass-back |
|
network interface |
10 / 100 / 1000Mbps adaptive * 2 |
|
|
Equipment function |
||
|
Access to the device |
rtsp video stream |
|
|
AI algorithm |
Support more than 32 AI algorithms, including human face detection and recognition, human body detection, vehicle, license plate detection, non-motor vehicle, fire detection, mouse, cat, dog, smoking, mask, hard hat, mobile phone, 8 attributes of human face, 17 attributes of human body, model, car color, car brand, etc |
|
