Model
|
LKG-IP415
|
|
Camera Type
|

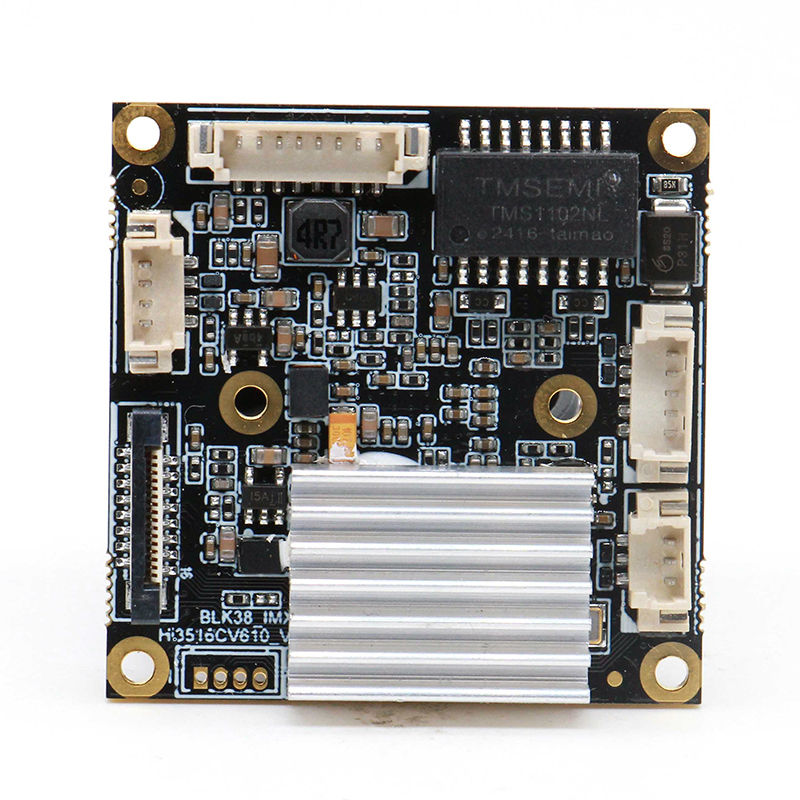

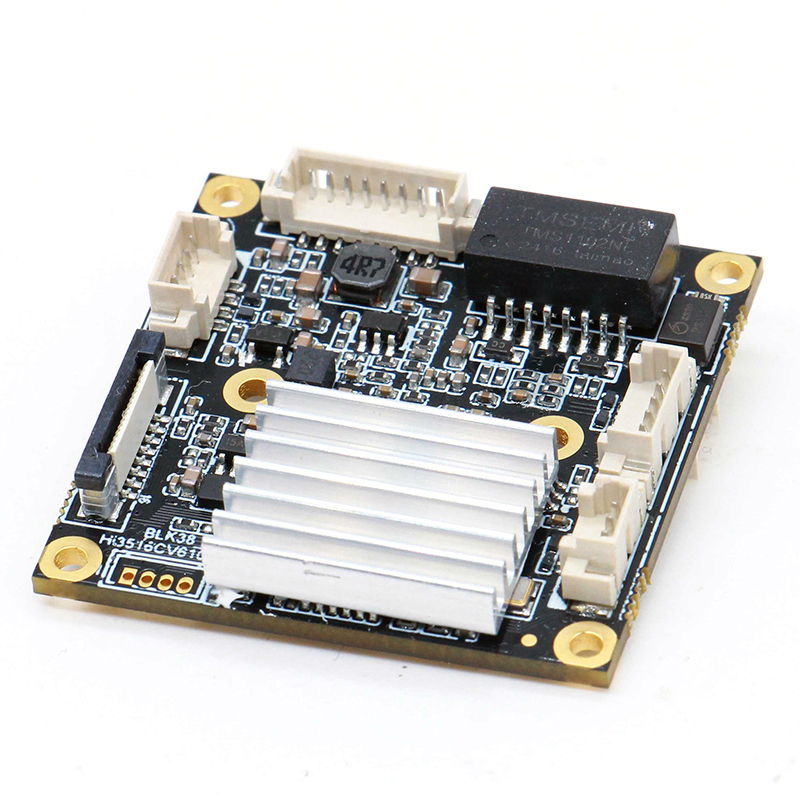

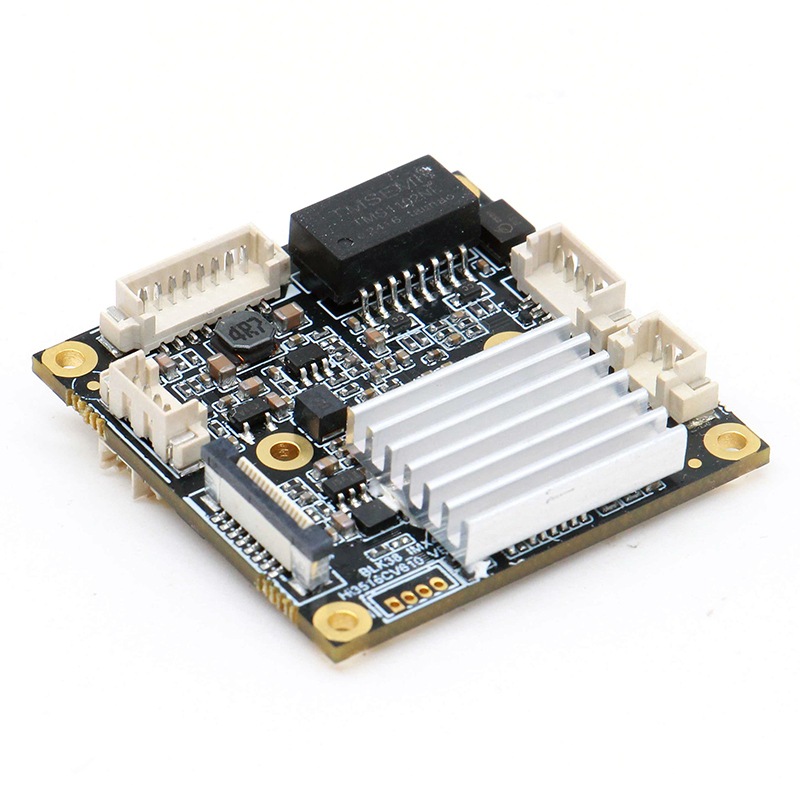

H.265 4K 8.0mp Starlight IP Camera Module
|
|
Camera
|
|
|
Image Sensor
|

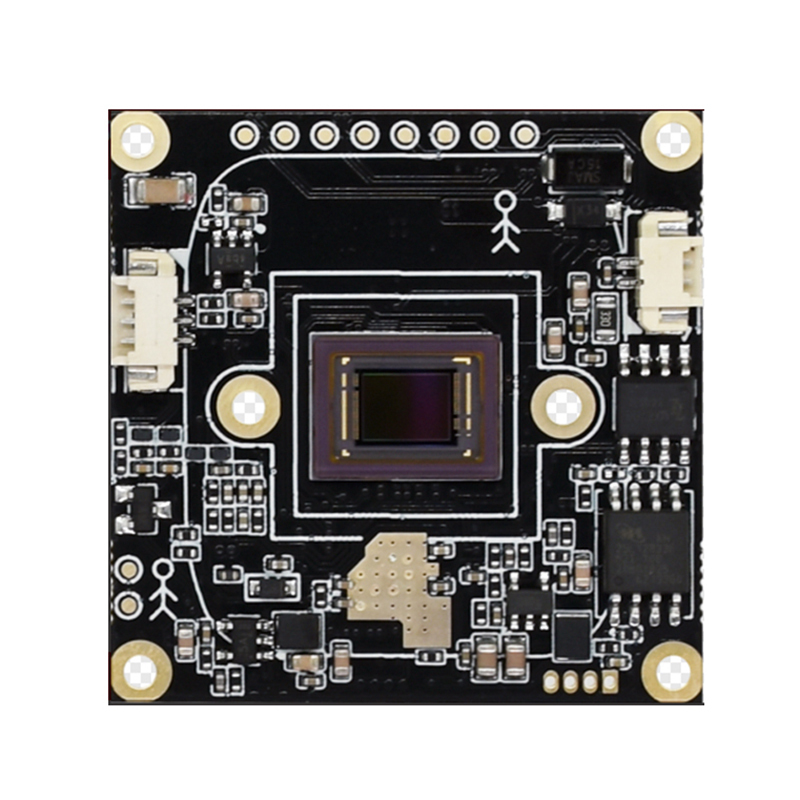

1/2.8" SONY IMX415 CMOS image sensor
|
|
Effective Pixels
|
3840 (H) × 2160 (V) approx. 8.29 M pixels
|
|
DSP
|
Hi3516CV610,ARM Cortex-A7 MP2 950MHz
|
|
Min. Illumination
|
Color: 0.005Lux F1.2(AGC ON), B/W: 0Lux(IR ON)
|
|
S/N Ratio
|
≥50dB(AGC OFF)
|
|
Lens Mount
|
Cs Mount Or M12 Mount(Optional)
|
|
Ir-Cut
|
Support
|
|
Day/Night
|
Color/B&W/Auto
|
|
Smart IR/white light
|
Support
|
|
Light mode
|
Low Level/High Level/PWM
|
|
WDR
|
≥100dB WDR
|
|
3DNR
|
Support
|
|
Tonal
|
Available to set
|
|
Brightness
|
Available to set
|
|
Sharpness
|
Available to set
|
|
Contrast
|
Available to set
|
|
Saturation
|
Available to set
|
|
Gamma
|
Available to set
|
|
BLC
|
Available to set
|
|
Mirror image
|
Open/Close
|
|
Flip
|
Open/Close
|
|
HLC
|
Open/Close
|
|
Video Format
|
PAL/NTSC
|
|
Dehaze
|
Open/Close
|
|
Exposure Strategy
|
Highlight Priority/Low Light Priority/Auto
|
|
Exposure Mode
|
Auto / Manual
|
|
AutoExposure Time
|
Auto / Manual(1/12s-1/100000s)
|
|
Slow Shutter
|
Open/Close
|
|
Gain Mode
|
Auto / Manual
|
|
White Balance Mode
|
Auto/Manual/White Balance Scene Adjustable/White Balance Style Adjustable
|
|
OSD Settings
|
Code stream information/display week/display time/channel title/watermark overlay
|
|
OSD Display
|
Color/size/position adjustable
|
|
Video/Audio
|
|
|
Video Coding
|
H.264/H.265/H.265+/MJPEG
|
|
Encoding Scheme
|
Baseline/Main Profile/High Profile
|
|
Resolution
|
Main stream:3840X2160(1-20fps),2880X1620,2560X1440,1920X1080(1-30fps)
|
|
Sub Stream/Three Streams:D1, VGA, (1-30fps)
|
|
|
Frame Rate
|
1-30fps(3840X2160 1-20fps)
|
|
Bit Rate
|
512Kbps-10Mbps
|
|
Bitrate Type
|
Support VBR/CBR
|
|
Audio Compression
|
G.711U/ G.711A/AAC
|
|
Audio Input Mode
|
Mic In/Line In
|
|
Audio Input Gain
|
Available To Set
|
|
Audio Output Gain
|
Available To Set
|
|
Echo
|
Open/Close
|
|
Network
|
|
|
Data Storage
|
Video Record, Picture Format
|
|
Trigger
|
Manual, automatic (motion detection, alarm, time)
|
|
Alarm Data Transmission
|
Websocket, FTP, Browser
|
|
Network Protocol
|
HTTP,HTTPS,TCP/IP,UDP,RTP,FTP,RTCP,RTSP,NTP,DHCP,DNS,DDNS,SSL/TLS,UPNP,PPPOE,etc.
|
|
Transfer Protocol
|
ONVIF/GB28181/SDK/CGI/HTTP/API/WEBRTC
|
|
Number Of Client Visits
|
Support 6 Users Login At The Same Time
|
|
Browser
|
IE/Edge/Chrome/Firefox
|
|
Network Lost Recording
|
Supports
|
|
Motion Detection
|
Supports 4 Area
|
|
Video Detect
|
Supports 4 Area
|
|
Interface
|
|
|
Network Interface
|
10M/100M Adaptive Ethernet Port
|
|
Audio Input
|
1Ch Audio Input
|
|
Audio Output
|
1Ch Audio Output
|
|
USB Interface
|
1 USB2.0 interface (5V power supply), support extended 4G/WiFi function
|
|
Uart port
|
1Ch
|
|
Reset Interface
|
Support
|
|
Alarm Input
|
1Ch
|
|
Smart Phone
|
iPhone,iPad, Android
|
|
Motorized Zoom Lens
|
Support 2.7-13.5mm/6-22mm/5-50mm Motorized Zoom Lens
|
|
TF storage function
|
Maximum Support 512G
|
|
Wifi
|
Support 802.11bgn
|
|
4G Function
|
Support 4G Cat.1, rate up to 10Mbps
|
|
POE
|
IEEE802.3af/at
|
|
General
|
|
|
Power Supply
|
DC12V1A
|
|
Power Consumption
|
<2.5W
|
|
Working Environment
|
-20°C~+60°C , Less Than 90% Rh
|
|
Product Size(L/W/H)
|
38X38X15mm
|
|
Net Weight
|
0.1Kg
|
