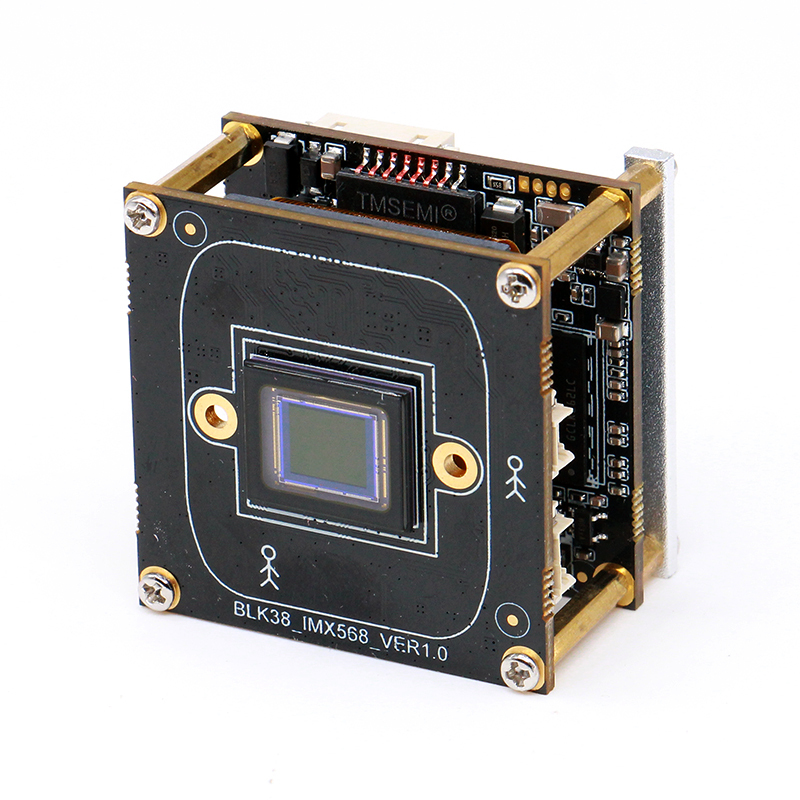

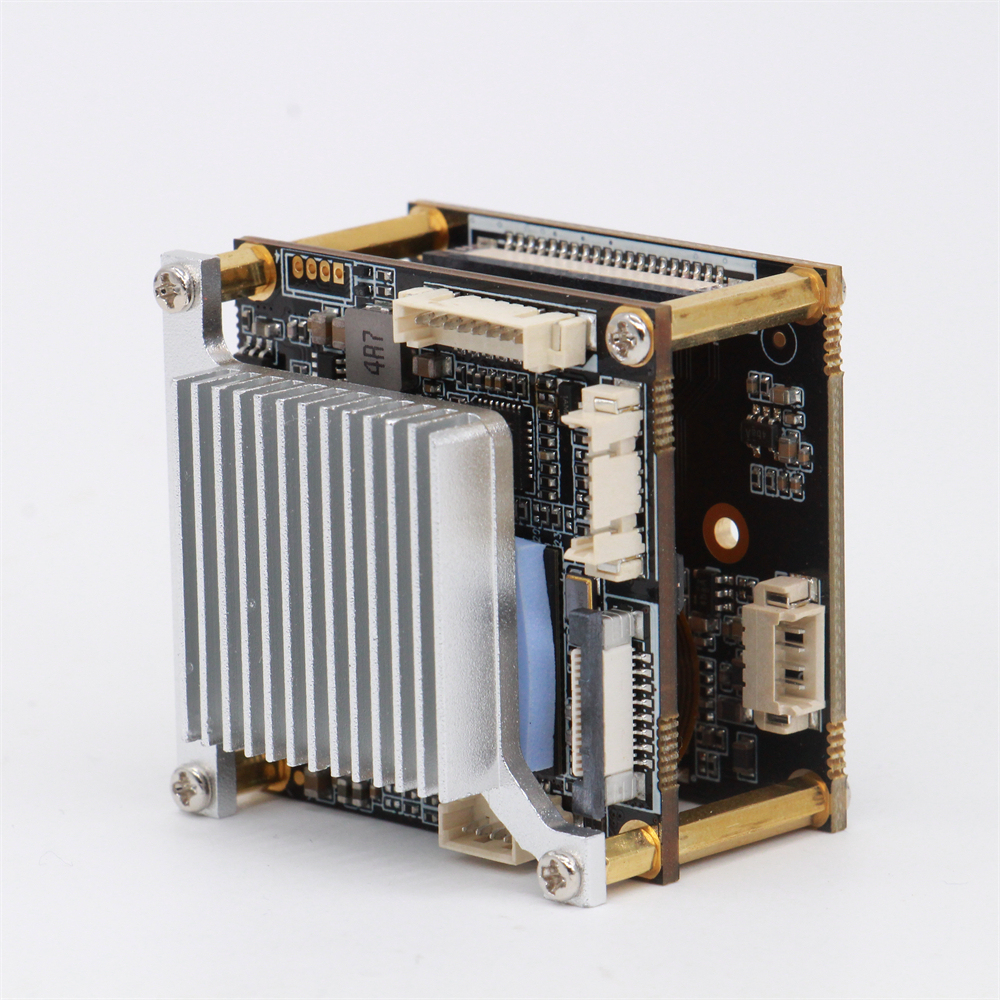

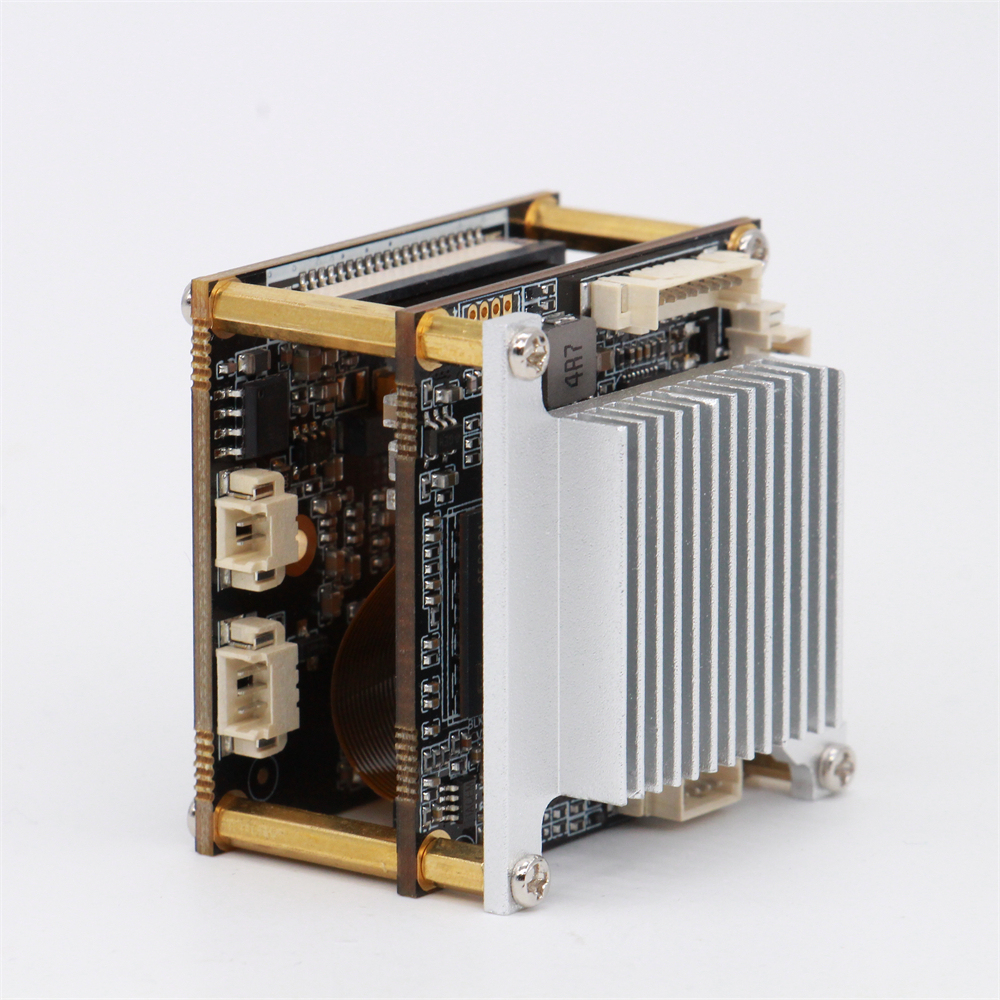

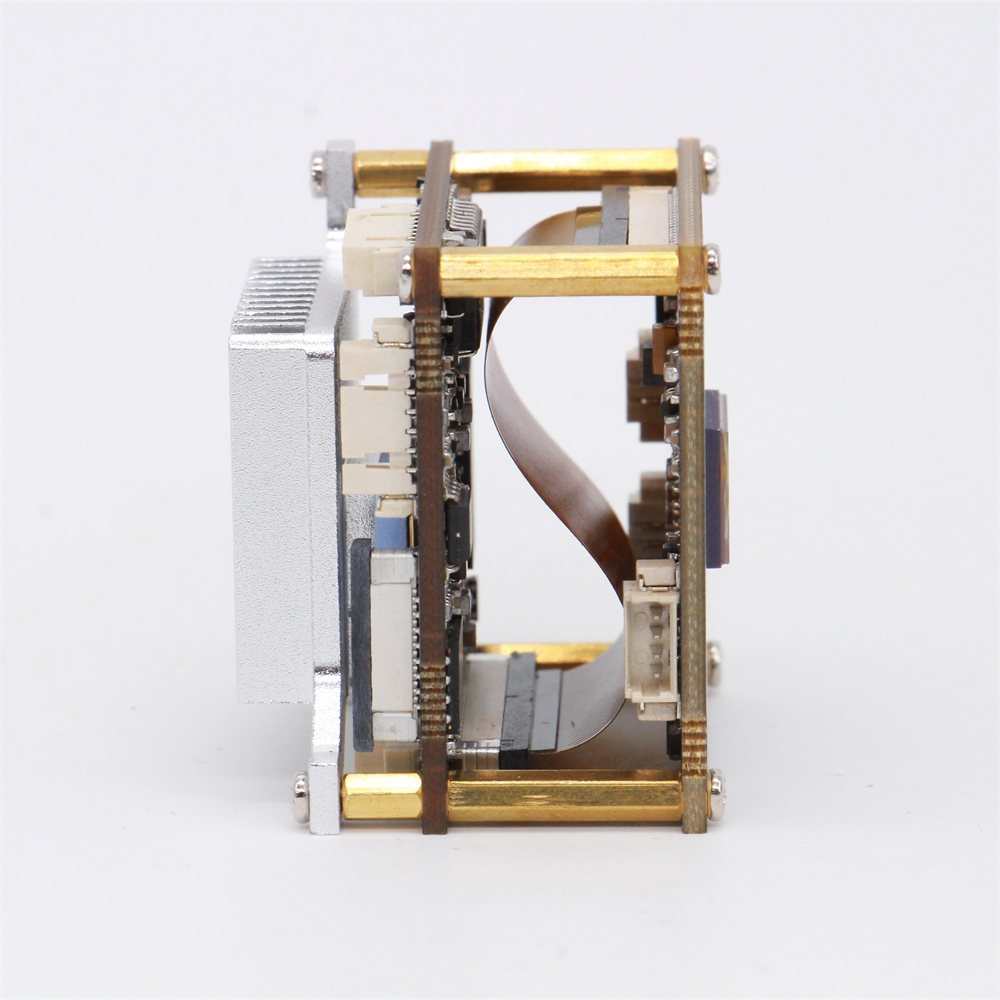

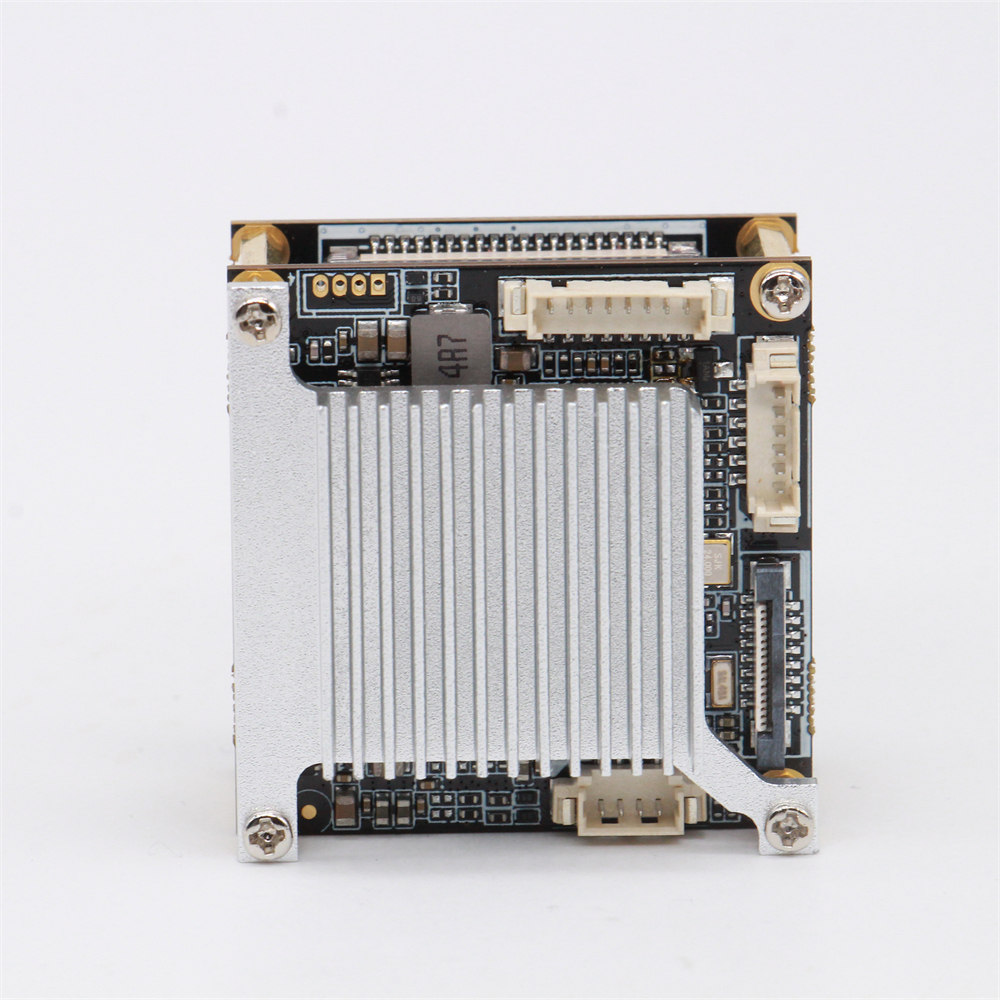

OEM ODM ONVIF RTSP RTMP 5MP Global Shutter Custom WIFI POE IP Camera Module PCB Circuit Board with SDK API to Integrate with your own software or Build your own firmware or Deploy your AI Model
Overview
This 5MP Global Shutter WIFI PoE IP camera Module PCB Cirucit board is a professional-grade security camera device designed for commercial and industrial surveillance. It supports some AI functions including Motion detection, humanoid intrusion detection,vehicle illegal parking detection, Off-duty detection, multi-zone privacy masking,video tampering detection alarm, which effectively protects sensitive monitoring areas and triggers real-time alerts when the camera lens is blocked, covered, or displaced. Built with IP67 weatherproof rating and stable ONVIF compatibility, this camera delivers reliable 24/7 video surveillance for global business users. As a direct OEM ODM custom manufacturer supplier, we support OEM, ODM and customized firmware functions for worldwide partners and open Linux SDK to partners who wants to build their own firmware or deploy their own AI model on camera NPU. .
Key Features
OEM ODM ONVIF RTSP RTMP 5MP Global Shutter Custom WIFI POE IP Camera Module PCB Circuit Board with SDK API to Integrate with your own software or Build your own firmware or Deploy your AI Model
Overview
This 5MP Global Shutter WIFI PoE IP camera Module PCB Cirucit board is a professional-grade security camera device designed for commercial and industrial surveillance. It supports some AI functions including Motion detection, humanoid intrusion detection,vehicle illegal parking detection, Off-duty detection, multi-zone privacy masking,video tampering detection alarm, which effectively protects sensitive monitoring areas and triggers real-time alerts when the camera lens is blocked, covered, or displaced. Built with IP67 weatherproof rating and stable ONVIF compatibility, this camera delivers reliable 24/7 video surveillance for global business users. As a direct OEM ODM custom manufacturer supplier, we support OEM, ODM and customized firmware functions for worldwide partners and open Linux SDK to partners who wants to build their own firmware or deploy their own AI model on camera NPU. .
Key Features
| Model | LKG-IP568 |
| Camera Type | H.265 5.0mp Global Shutter IP Camera Module |
| Camera | |
| Image Sensor | 1/1.8" SONY IMX568 CMOS Global shutter sensor Pregius S |
| Effective Pixels | 2448 (H) × 2048 (V) approx. 5.01 M pixels |
| DSP | Hi3516DV500 Dual-core ARM Cortex A55 850MHz 2.0Tops |
| Min. Illumination | Color: 0.001Lux F1.2(AGC ON), B/W: 0Lux(IR ON) |
| S/N Ratio | ≥50dB(AGC OFF) |
| Lens Mount | Cs Mount Or M12 Mount(Optional) |
| Ir-Cut | Support |
| Day/Night | Color/B&W/Auto |
| Smart IR/white light | Support |
| Light mode | Low Level/High Level/PWM |
| WDR | ≥100dB WDR |
| 3DNR | Support |
| Tonal | Available to set |
| Brightness | Available to set |
| Sharpness | Available to set |
| Contrast | Available to set |
| Saturation | Available to set |
| Gamma | Available to set |
| BLC | Available to set |
| Mirror image | Open/Close |
| Flip | Open/Close |
| HLC | Open/Close |
| Video Format | PAL/NTSC |
| Lens Correction | Open/Close |
| Dehaze | Open/Close |
| Exposure Strategy | Highlight Priority/Low Light Priority/Auto |
| Exposure Mode | Auto / Manual |
| AutoExposure Time | Auto / Manual(1/12s-1/100000s)/Once White Balance |
| Slow Shutter | Open/Close |
| Gain Mode | Auto / Manual |
| White Balance Mode | Auto/Manual/White Balance Scene Adjustable/White Balance Style Adjustable |
| OSD Settings | Code stream information/display week/display time/channel title/watermark overlay |
| OSD Display | Color/size/position adjustable |
| Video/Audio | |
| Video Coding | H.265/H.264 |
| Encoding Scheme | Baseline/Main Profile/High Profile |
| Resolution | Main stream: 2448*2048,2296*1920,2048*1712,1920*1080(1-30fps) |
| Sub Stream/Three Streams:D1, VGA, (1-30fps) | |
| Frame Rate | 1-30fps |
| Bit Rate | 32Kbps-32Mbps |
| Bitrate Type | Support VBR/CBR |
| Audio Compression | G.711U/ G.711A/G.726/AAC |
| Audio Input Mode | Mic In/Line In |
| Audio Input Gain | Available To Set |
| Audio Output Gain | Available To Set |
| Echo | Open/Close |
| Network | |
| Data Storage | Video Record, Picture Format |
| Trigger | Manual, automatic (motion detection, alarm, time) |
| Alarm Data Transmission | Websocket, FTP, Browser |
| Network Protocol | HTTP,HTTPS,TCP/IP,UDP,RTP,FTP,RTMP,RTSP,NTP,DHCP,DNS,DDNS,SSL/TLS,UPNP,PPPOE,etc. |
| Transfer Protocol | ONVIF/GB28181/SDK/CGI/WEBRTC/GA1400 |
| Number Of Client Visits | Support 8 Users Login At The Same Time |
| Browser | IE/Edge/Chrome/Firefox |
| Network Lost Recording | Supports |
| Motion Detection | Supports 4 Area |
| Hide Detect | Supports 4 Area |
| Interface | |
| Network Interface | 10M/100M Adaptive Ethernet Port |
| Audio Input | 1Ch Audio Input |
| Audio Output | 1Ch Audio Output |
| USB interface | 1 USB2.0 interface (5V power supply), support extended 4G/WiFi function |
| Uart port | 1Ch |
| Reset interface | Support |
| RS485 | 1Ch |
| Auto IRIS Lens | Support |
| Smart Phone | iPhone,iPad, Android |
| Motorized Zoom Lens | Support 3.6-11mm Motorized Zoom Lens |
| TF storage function | Maximum Support 512G |
| Wifi | Support 802.11bgn |
| 4G Function | Support 4G Cat.1, rate up to 10Mbps |
| POE | IEEE802.3af/at |
| Smart function | motion detection, camera occlusion detection, regional humanoid intusion detection, off-duty detection, ileagal parking detection |
| Function customization | Support function customization development, platform protocol docking, algorithm customization transplantation, hardware and software development |
| General | |
| Power Supply | DC12V1A |
| Power Consumption | <3W |
| Working Environment | -20°C~+60°C , Less Than 90% Rh |
| Product Size(L/W/H) | 38X38X30mm |
| Net Weight | 0.1Kg |
Product Advantages
Company Strength & Service List
Shenzhen Leekgo Technology Co.,Ltd (LEEKGOVISION ) is a China-based R&D technology company specializing in OEM ODM Custom security POE WIFI IP camera / PCBA boards with SDK for your own firmware or deploy your own AI model
Full Service List :
CE, FCC ROHS Certificates
Target Global Potential partners
Overseas security system integrators, private VMS cloud platform operators, industrial monitoring equipment manufacturers, medical surveillance solution providers, retail loss prevention technology companies, and AI visual solution developers and other technology companies who need independent controllable camera hardware and firmware.
Core Cooperation Advantages For Global Partners
FAQ
Q1: What products and services does your company provide?A1: We are a China B2B manufacturer focusing on WIFI IP surveillance camera solutions. Our full services include:
1. Supply ready-made & customized security camera PCBA circuit boards separately;
2. Custom editable Linux Buildroot firmware development and modification;
3. Full OEM & ODM surveillance camera one-stop customization;
4. Complete camera assembly, aging testing, packaging turnkey service;
5. Custom lightweight edge AI vision algorithm deployment on camera SoC;
6. Firmware privatization transformation, remove factory built-in public cloud modules;
7. Protocol customization: MQTT TLS, RTSP, HTTP, WebSocket, CGI for clients’ private server docking.
We only serve global overseas B2B buyers, including system integrators, private VMS cloud platform developers, retail loss prevention tech firms, medical monitoring solution providers.
Q2: Can I only buy PCBA boards without purchasing complete cameras?
A2: Yes, standalone PCBA board sales are our core business. We support clients who only need bare circuit boards to conduct independent firmware development, secondary hardware matching and self-assembly locally. We do not force customers to order finished cameras together with PCBA.
Q3: What is the difference between OEM and ODM cooperation with your factory?
A3:
• OEM: Based on our existing mature PCBA hardware and base firmware, we customize UI, brand logo, OSD text, alarm rules and AI detection functions according to your demands, with low modification cost and short delivery cycle;
• ODM: Deep custom development including hardware circuit fine-tuning, full firmware rewrite, exclusive edge AI algorithm training, independent private protocol adaptation, suitable for clients with proprietary private cloud platforms and long-term project layout.
Q4: What SoC chip platforms do your camera PCBA boards support?
A4: Our mainstream boards adopt Hisilicon 3516CV610, Hisilicon3516DV500, Hisilicon3519DV500 and SigmaStar SSC338G and Rockchip RV1106B / RV1126B-P series chips. We avoid restricted chips that cannot be exported to overseas markets, fully meeting NDAA compliance requirements for European, American and Middle Eastern projects. We provide single-lens and binocular synchronous dual-MIPI POE PCBA modules.
Q5: Does your PCBA support POE power supply?
A5: All mainstream binocular and single-lens IPC PCBA support standard 802.3af/at POE power supply. We also provide DC 12V powered versions for non-POE deployment scenarios upon request.
Q6: Can you adjust hardware circuits of PCBA according to my special requirements?
A6: Yes, we support small-range hardware modification for ODM orders, such as adjusting infrared light drive circuit, expanding TF card storage circuit, optimizing audio input/output interface, adjusting MIPI synchronous signal circuit for binocular splicing. Large-scale hardware redesign requires ODM cooperation with certain engineering fees.
Q7: Can you provide complete compilable Buildroot firmware source code instead of only closed SDK?
A7: source code is not available, only closed SDK, drive and BSP and device tree and all low-layer underlying program is done by our engineers, you just develop your own application on the application-level according to your business logic.
Q8: Does your camera firmware support MQTT TLS encrypted connection for private cloud servers?
A8: All our customized firmware natively support MQTT TLS 1.2/1.3 encrypted transmission, RTSP, WebSocket, HTTP and CGI protocols. We can completely delete the factory’s built-in public cloud background processes at the source code level, with no mandatory binding to third-party cloud platforms. All alarm messages, JPEG snapshot images and device status data can be pushed exclusively to customers’ self-built private MQTT brokers or VMS servers.
Q9: Can the camera firmware completely remove your factory’s proprietary cloud module?
A9: Yes. We conduct deep privatization transformation on the firmware source code, fully stripping all background services, heartbeat connections and remote push logic connected to our factory cloud, leaving only open standard communication protocols for your private server docking. No hidden cloud resident programs will remain running on the device.
Q10: Is WebRTC supported on your camera boards?
A10: Our standard firmware does not prioritize WebRTC due to high deployment cost, high server configuration requirements and obvious latency feedback from overseas clients. We recommend mature MQTT TLS + RTSP combined solution for stable cross-border private cloud docking. If you require WebRTC function, we can develop it via customized firmware with additional engineering fees.
Q11: What AI algorithms can you customize and deploy on the camera PCBA?
A11: We can customize and train AI model according to your requirements.
Q12: Can I develop my own AI algorithm model and run it on your PCBA boards?
A12: Yes. We provide Linux SDK and toolchain to you for your AI model converting and deployment.
Q13: What is the minimum order quantity for PCBA boards and finished cameras?
A13:
1. PCBA bare board sample order: MOQ 10–50 pieces for prototype testing;
2. Mass production PCBA: 500 pieces minimum;
3. OEM finished camera sample: MOQ 100 units;
4. Deep ODM firmware + hardware full customization: Mass order MOQ 1000 pieces.
Q14: How long is the sample delivery cycle? How about mass production lead time?
A14:
1. Standard off-the-shelf PCBA samples: 3–5 working days delivery;
2. Simple firmware customization samples: 7–10 working days;
3. Deep ODM full source code + algorithm development samples: 15–25 working days;
4. Mass production bulk orders: 15–30 working days based on order quantity.
Q15: Can you provide small batch trial production before large formal orders?
A15: Yes, we support small batch trial orders for all clients to complete private server docking testing, algorithm verification and market trial sales before large-volume procurement.
Q16: Do your products meet GDPR and HIPAA privacy compliance standards for European and American markets?
A16: Our customizable firmware fully supports privacy compliance requirements: local AES256 video snapshot encryption, no automatic data upload to public cloud, full MQTT TLS encryption transmission, configurable local storage only mode, which meets GDPR for commercial surveillance and HIPAA standards for medical monitoring projects in North America.
Q17: What certifications can your cameras support for export?
A17: Our hardware PCBA and finished cameras can pass CE, FCC, RoHS certification. We assist customers in providing test data and supporting documents for regional customs clearance.
Q18: What technical after-sales support can you provide after delivery?
A18:
1. Free hardware circuit and firmware basic docking technical guidance for all orders;
2. Paid long-term firmware modification, protocol debugging and AI algorithm adjustment services;
3. 12-month warranty for all PCBA and finished camera hardware;
4. Provide complete technical documents: hardware pinout, firmware operation manual, MQTT TLS docking documentation, AI model deployment guide.
Q19: Do you offer long-term firmware upgrade and security patch support?
A19: For clients purchasing full Buildroot source code authorization, you can independently complete firmware OTA upgrades and security patch updates. For customers using our closed SDK version, we provide regular security patch updates within 3 years after order delivery.
Q20: Which types of overseas customers are your main target buyers?
A20: Our core clients are overseas companies with independent self-built cloud/VMS platforms, including security system integrators, private surveillance software developers, retail loss prevention tech enterprises, industrial factory monitoring solution providers, medical HIPAA-compliant monitoring companies and AI visual solution companies or any technology companies who wants to integrate our camera hardware with their own software/platform.
Q21: Can your cameras meet NDAA compliant?
A21: if you want NDAA compliant, we think Rockchips soc is ok.
