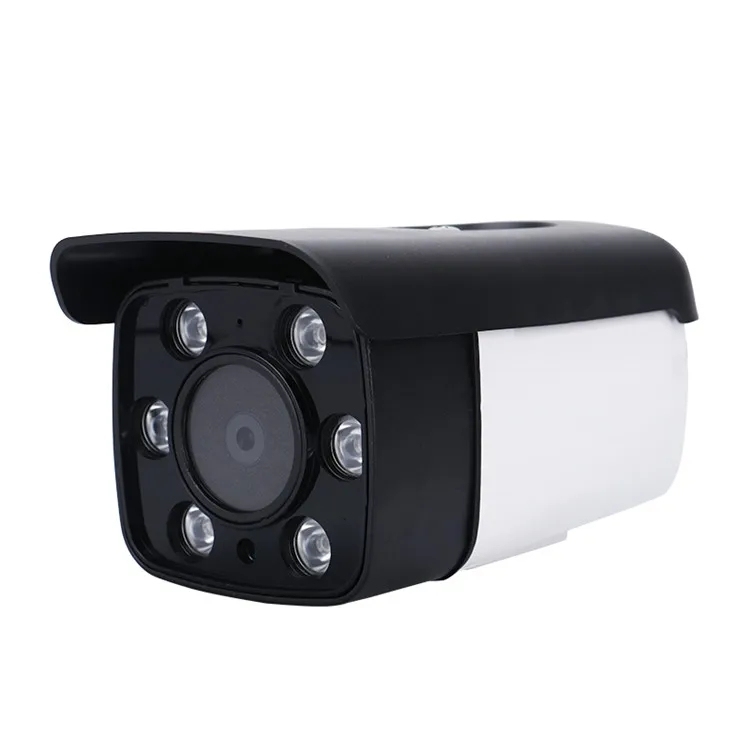

Compact 5MP Multi Face Detection and Face Recognition AI Camera with API JSON protocol
Main Features:
|
1. Offer JSON protocol for your server software integration 2. Built-in deep smart-learning face algorithm, automatically extract face features and self-learn 3. Mini Small size to install easily 4. Support many catpure mode: quick,interval,leave and capture times can be set; 5. Support vertical and horizontal capture angle can be set |
|
6. Support detect Max 32 faces per frame; 7. Support 30*30-700*700 pixel face can be detected; 8. Support upload face photo, human body photo, fullscreen shot, and image quality can be set; 9. Support Digital WDR for HD face exposure; 10. Support 2 Capture mode: backlight mode and normal mode; |
|
Technical Specs |
|
|
|
|
|
MainChip |
Ssc338g, 8GB eMMC |
|
Sensor |
1/2.8" Progressive Scan CMOS IMX335 |
|
Min illumination |
color:0.01Lux@F1.2(AGC ON),Black&white:0Lux(IR ON) |
|
WDR |
Digital WDR |
|
Fixed Lens |
6mm(default)/8mm/10mm/12mm |
|
Recognition distance |
5-6 meter for 6mm lens, 7-8 meter for 8mm lens, 9-10 meter for 10mm lens, 11-12 meter for 12mm lens |
|
4G/WiFi |
Optional |
|
Main stream resolution |
25fps@(2592×1944,2560× 1440) |
|
Sub stream resolution |
25fps@(704×576) |
|
Encode format |
H.265+/H.265/H.264 |
|
Face Capacity |
50,000 face |
|
Capacity for captured face |
100,000 pcs |
|
Encode bit |
32 Kbps~16 Mbps |
|
H.264 profile |
BaseLine Profile/Main Profile/High Profile |
|
H.265 profile |
Main Profile |
|
Bit Rate control |
· Fixed rate, variable rate ·
|
|
IR Night vision |
6pcs IR led |
|
Enhanced Image |
· Backlight compensation, strong light suppression, 3D digital noise reduction, fog penetration ·
|
|
Image setting |
Rotation, saturation, brightness, contrast, sharpness, AGC, and white balance support for day/night conversion |
|
Network protocol |
HTTP、HTTPS、TCP/IP、UDP、RTP、FTP、RTCP、RTSP、RTMP, WEBRTC,NTP、DHCP、DNS、DDNS、SNMP、SSL/TLS、WebSocket、UPNP、PPPOE,ONVIF |
|
Browser |
Plugin for IE:IE10,IE11 Local preview:Edge,Chrome,Firefox |
|
Waterproof |
IP67 |
|
Camera Dimension |
77*77*56mm |
|
Power input |
DC12V / POE |
